Technical Parameters
| Input Voltage | 100V-145V |
| 185V-240V | |
| 100V~240V | |
| AC Input Frequency | 50~60Hz |
| AC Input Current | 16A 110V/ 8A 220V |
| Max Efficiency. | ≥93% |
| Protection Level | IP66 |
| Operating Temperature | -30~+65℃ |
| Storage Temperature | -40~+95℃ |
| Communication Function | CAN 485 |
| Noise | ≤40dB |
| Shell material | Aluminium |
| Overall Size | 282*124*72mm |
| Net Weight | 3.0Kg |
Features
| 1. Precharge-CC-CV-Trickle Charging Mode; |
| 2.Internal Primary Current Fused;Inrush Limiting; |
| 3. Controlled by intelligent software; |
| 4.Overvoltage, Overcurrent, overpower, overheating and short-circuitProtection; |
| 5.Output Reverse PolarityProtection |
| 6.Output empty-load protection; |
| 7. Reverse Current Protection; |
| 8. Low Voltage Activation Function |
| 9.Power Loss Activation; |
| 10. Automatic shutdown when fully charged |
| 11. LED light indicating charging status |
List of Models
| Applicable to | Output Ratings | |||||
| Li-lon/li-Po battery | 42V 30A | 58.84V 25A | 67.2V 20A | 84V 15A | 100.8V 12A | 117.6V 10A |
| LiFePO4 battery | 43.8V 30A | 58.4V 25A | 73V 20A | 87.6V 15A | 102.2V 12A | 116.8V 10A |
| Lead Acid Battery | 36V 30A | 48V 25A | 60V 20A | 72V 15A | 84V 12A | 96V 10A |

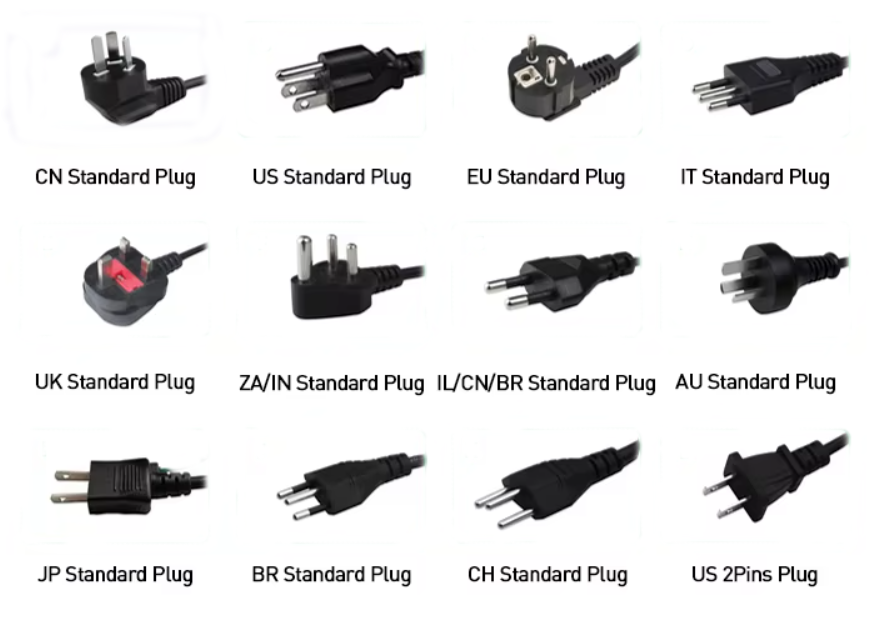

AC Plug type
DC output plug options
Certificates
Delivery
Battery chargers applications scenarios
Company Information
FAQ
1. About Us:
We are a seasoned power supply manufacturer, boasting 18 years of expertise and a stellar
reputation in this industry.
2. Quality Control:
Our commitment to quality includes rigorous measures:
* Pre-production sample before mass production
* Final inspection before shipment
* Minimum 12-hour aging test before market introduction
3. Certifications and Markets:
We meticulously ensure product conformity:
* Stringent quality control across production stages
* Certifications: CE, ETL, FCC, CB, UL, GS and more
4.Customization and Expertise:
Absolutely, we offer tailored solutions:
* OEM and ODM services available
5. Comprehensive Services:
Our services encompass:
* Accepted Delivery Terms: FOB, EXW, DDP
* Accepted Payment Currencies: USD, EUR, HKD, CNY
* Accepted Payment Methods: T/T, MoneyGram, PayPal, Western Union, Escrow
6. Warranty Assurance:
Rest easy with our robust warranty:
* All products feature a 1-year warranty.
