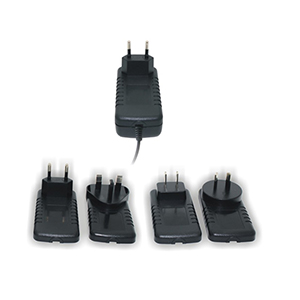

45W WALL-MOUNT

45W WALL-MOUNT

Green Mode
DoE Level VI, ErP Stage 2, CoC Tier2
No Load Power Consumption Less Than 0.1W
ModelO/P Voltage (V)O/P Current (A)Watt (W)
WAC050V5.00-CS*5525
WAC075V4.00-CS*7.5430
WAC090V4.00-CS*9428
WAC120V3.00-CS*12336
WAC120V3.33-CS*123.340
WAC150V3.00-CS*15345
WAC180V2.50-CS*182.545
WAC190V2.37-CS*192.3745
WAC195V2.31-CS*19.52.3145
WAC200V2.25-CS*202.2545
AC240V1.88-CS*241.8845
Input
Voltage100-240 VAC,
Line Frequency50-60Hz
Current1.1A Max.
ProtectionInternal Primary Current Fuse
ConfigurationEU/UK/US/CN/AU AC PLUG
Output
Load Regulation± 5%
Ripple2% Vp-p Max. for Output Voltage @ Full Load
Transient Response0.5ms for 50% Load Change Typical
Holdup Time10mS @ Full Load
ProtectionShort Circuit Protection/ Over Voltage Protection/ Over Current
Protection
DC Cord22AWG / 20AWG / 18AWG
Ferrite CoreNo
Safety Approvals (EN / IEC / UL 62368)
CB / ETL / cETL / FCC / GS / CE
Electrical
TopologySwitching Flyback
Dielectric Withstand3,000 VAC Primary – Secondary
Leakage CurrentClass I: 3.5mA
Class II: 0.25mA
EfficiencyDoE  Level VI,  ErP Stage 2, CoC Tier 2
EMI Conduction & RadiationCompliance   to EN55032:2015+A1:2020
Harmonic CurrentCompliance   to EN61000-3-2:2019
EMS ImmunityCompliance   to EN55035:2017+A11:2020
MTBF300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature0 to +40°C
Storage Temperature-20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
CoolingNatural Convection Cooling
Mechanical
Case DimensionL 99 x W 50 x H 29 (mm)
Weight160g (Ref.)
